HomeProductsDiscrete Semiconductor ProductsTransistors - FETs, MOSFETs - SingleIRF1405Z

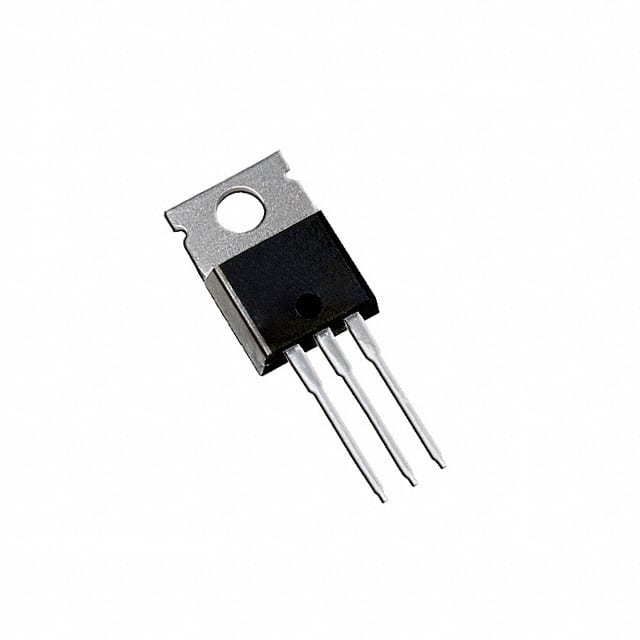

IRF1405Z Image Image may be representation.
See specs for product details.
IRF1405ZInfineon Technologies MOSFET N-CH 55V 75A TO220AB
Part NumberIRF1405Z
PackageTO-220-3
ManufacturerCypress Semiconductor (Infineon Technologies)
RoHs Status
Manufacturer Part NumberInfineon Technologies-IRF1405Z
DescriptionMOSFET N-CH 55V 75A TO220AB
In stock3748
Data sheet
1.IRF1405Z.pdf 2.IRF1405Z.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 3748 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - IRF1405Z
  • IRF1405Z Tech Specifications
    Infineon Technologies - IRF1405Z technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies - IRF1405Z
    Manufacturer Cypress Semiconductor (Infineon Technologies)
    Vgs(th) (Max) @ Id 4V @ 250µA
    Vgs (Max) ±20V
    Technology MOSFET (Metal Oxide)
    Supplier Device Package TO-220AB
    Series HEXFET®
    Rds On (Max) @ Id, Vgs 4.9mOhm @ 75A, 10V
    Power Dissipation (Max) 230W (Tc)
    Package / Case TO-220-3
    Package Tube
    Operating Temperature -55°C ~ 175°C (TJ)
    Mounting Type Through Hole
    Input Capacitance (Ciss) (Max) @ Vds 4780 pF @ 25 V
    Gate Charge (Qg) (Max) @ Vgs 180 nC @ 10 V
    FET Type N-Channel
    FET Feature -
    Drive Voltage (Max Rds On, Min Rds On) 10V
    Drain to Source Voltage (Vdss) 55 V
    Current - Continuous Drain (Id) @ 25°C 75A (Tc)
  • TheIRF1405Zis a Discrete Semiconductor Products component, full developed and mass-produced by Infineon Technologies manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is MOSFET N-CH 55V 75A TO220AB and it falls under the category of Transistors - FETs, MOSFETs - Single, with Manufacturer of Cypress Semiconductor (Infineon Technologies) and Vgs(th) (Max) @ Id of 4V @ 250µA and Vgs (Max) of ±20V. Efficient purchasing through Cypress-Micro.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for IRF1405Z or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute IRF1405ZLPBF IRF1405ZPBF IRF1405ZS-7P IRF1405ZL
Part Number IRF1405ZLPBF IRF1405ZPBF IRF1405ZS-7P IRF1405ZL
Manufacturer Infineon Technologies Infineon Technologies Infineon Technologies Infineon Technologies
Package / Case - - - -
FET Type - - - -
Input Capacitance (Ciss) (Max) @ Vds - - - -
Vgs(th) (Max) @ Id - - - -
Operating Temperature - - - -
Current - Continuous Drain (Id) @ 25°C - - - -
FET Feature - - - -
Drive Voltage (Max Rds On, Min Rds On) - - - -
Technology - - - -
Supplier Device Package - - - -
Package - Bulk Bulk Bulk
Vgs (Max) - - - -
Series - * * *
Gate Charge (Qg) (Max) @ Vgs - - - -
Mounting Type - - - -
Power Dissipation (Max) - - - -
Rds On (Max) @ Id, Vgs - - - -
Drain to Source Voltage (Vdss) - - - -
