HomeProductsDiscrete Semiconductor ProductsTransistors - FETs, MOSFETs - SingleIPD180N10N3GBTMA1

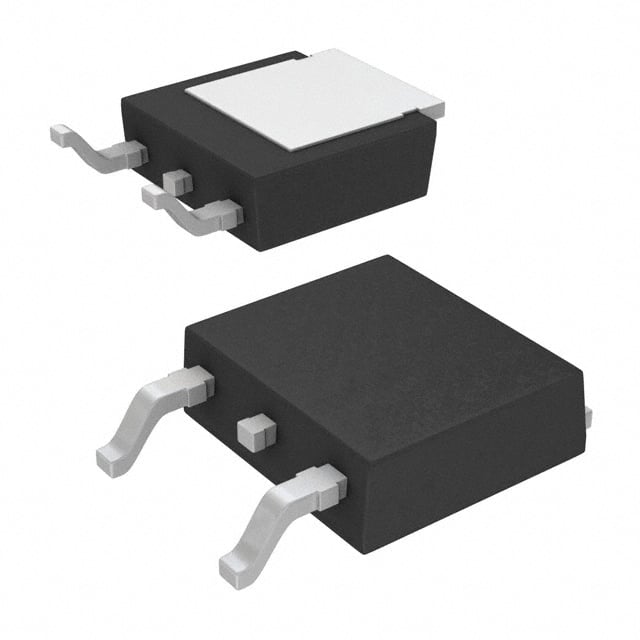

IPD180N10N3GBTMA1 Image Image may be representation.
See specs for product details.
IPD180N10N3GBTMA1Infineon Technologies MOSFET N-CH 100V 43A TO252-3
Part NumberIPD180N10N3GBTMA1
PackageTO-252-3, DPak (2 Leads + Tab), SC-63
ManufacturerCypress Semiconductor (Infineon Technologies)
RoHs StatusROHS3 Compliant
Manufacturer Part NumberInfineon Technologies-IPD180N10N3GBTMA1
DescriptionMOSFET N-CH 100V 43A TO252-3
In stock4094
Data sheet
1.IPD180N10N3GBTMA1.pdf 2.IPD180N10N3GBTMA1.pdf 3.IPD180N10N3GBTMA1.pdf 4.IPD180N10N3GBTMA1.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 4094 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - IPD180N10N3GBTMA1
  • IPD180N10N3GBTMA1 Tech Specifications
    Infineon Technologies - IPD180N10N3GBTMA1 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies - IPD180N10N3GBTMA1
    Manufacturer Cypress Semiconductor (Infineon Technologies)
    Vgs(th) (Max) @ Id 3.5V @ 33µA
    Vgs (Max) ±20V
    Technology MOSFET (Metal Oxide)
    Supplier Device Package PG-TO252-3
    Series OptiMOS™
    Rds On (Max) @ Id, Vgs 18mOhm @ 33A, 10V
    Power Dissipation (Max) 71W (Tc)
    Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
    Package Tape & Reel (TR)
    Operating Temperature -55°C ~ 175°C (TJ)
    Mounting Type Surface Mount
    Input Capacitance (Ciss) (Max) @ Vds 1800 pF @ 50 V
    Gate Charge (Qg) (Max) @ Vgs 25 nC @ 10 V
    FET Type N-Channel
    FET Feature -
    Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
    Drain to Source Voltage (Vdss) 100 V
    Current - Continuous Drain (Id) @ 25°C 43A (Tc)
    Base Product Number IPD180N
  • TheIPD180N10N3GBTMA1is a Discrete Semiconductor Products component, full developed and mass-produced by Infineon Technologies manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is MOSFET N-CH 100V 43A TO252-3 and it falls under the category of Transistors - FETs, MOSFETs - Single, with Manufacturer of Cypress Semiconductor (Infineon Technologies) and Vgs(th) (Max) @ Id of 3.5V @ 33µA and Vgs (Max) of ±20V. Efficient purchasing through Cypress-Micro.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for IPD180N10N3GBTMA1 or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute IPD180N10N3GATMA1 IPD200N15N3GBTMA1 IPD170N04NGBTMA1 IPD220N06L3GBTMA1
Part Number IPD180N10N3GATMA1 IPD200N15N3GBTMA1 IPD170N04NGBTMA1 IPD220N06L3GBTMA1
Manufacturer Infineon Technologies Infineon Technologies Infineon Technologies Infineon Technologies
FET Feature - - - -
Vgs (Max) - - - -
Supplier Device Package - - - -
Operating Temperature - - - -
Package / Case - - - -
Vgs(th) (Max) @ Id - - - -
Rds On (Max) @ Id, Vgs - - - -
Mounting Type - - - -
Power Dissipation (Max) - - - -
Drive Voltage (Max Rds On, Min Rds On) - - - -
Package - Bulk Bulk Bulk
Input Capacitance (Ciss) (Max) @ Vds - - - -
FET Type - - - -
Series - * * *
Current - Continuous Drain (Id) @ 25°C - - - -
Gate Charge (Qg) (Max) @ Vgs - - - -
Drain to Source Voltage (Vdss) - - - -
Technology - - - -
Base Product Number - - - -
