HomeProductsDiscrete Semiconductor ProductsTransistors - FETs, MOSFETs - SingleBSZ0602LSATMA1

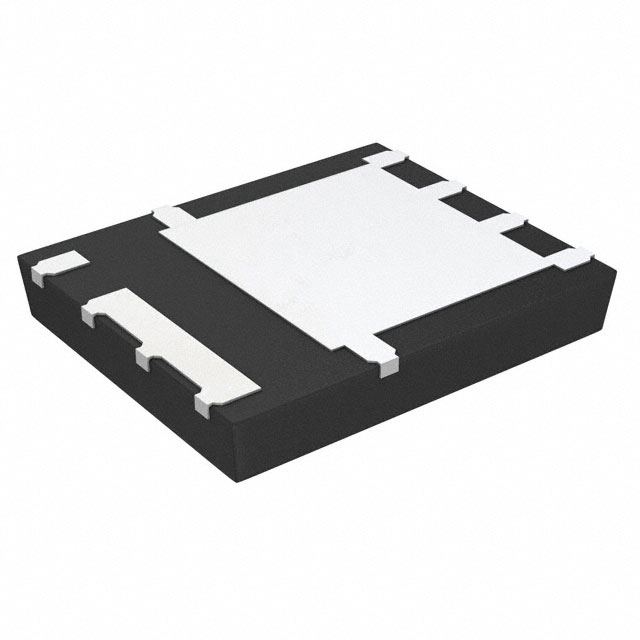

BSZ0602LSATMA1 Image Image may be representation.
See specs for product details.
BSZ0602LSATMA1Infineon Technologies MOSFET N-CH 80V 13A/40A TSDSON
Part NumberBSZ0602LSATMA1
Package8-PowerTDFN
ManufacturerCypress Semiconductor (Infineon Technologies)
RoHs StatusROHS3 Compliant
Manufacturer Part NumberInfineon Technologies-BSZ0602LSATMA1
DescriptionMOSFET N-CH 80V 13A/40A TSDSON
In stock13547
Data sheet
BSZ0602LSATMA1.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 13547 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - BSZ0602LSATMA1
  • BSZ0602LSATMA1 Tech Specifications
    Infineon Technologies - BSZ0602LSATMA1 technical specifications, attributes, parameters and parts with similar specifications to Infineon Technologies - BSZ0602LSATMA1
    Manufacturer Cypress Semiconductor (Infineon Technologies)
    Vgs(th) (Max) @ Id 2.3V @ 36µA
    Vgs (Max) ±20V
    Technology MOSFET (Metal Oxide)
    Supplier Device Package PG-TDSON-8 FL
    Series OptiMOS™ 5
    Rds On (Max) @ Id, Vgs 7mOhm @ 20A, 10V
    Power Dissipation (Max) 69W (Tc)
    Package / Case 8-PowerTDFN
    Package Tape & Reel (TR)
    Operating Temperature -55°C ~ 150°C (TJ)
    Mounting Type Surface Mount
    Input Capacitance (Ciss) (Max) @ Vds 2340 pF @ 40 V
    Gate Charge (Qg) (Max) @ Vgs 18 nC @ 4.5 V
    FET Type N-Channel
    FET Feature -
    Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
    Drain to Source Voltage (Vdss) 80 V
    Current - Continuous Drain (Id) @ 25°C 13A (Ta), 40A (Tc)
    Base Product Number BSZ0602
  • TheBSZ0602LSATMA1is a Discrete Semiconductor Products component, full developed and mass-produced by Infineon Technologies manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is MOSFET N-CH 80V 13A/40A TSDSON and it falls under the category of Transistors - FETs, MOSFETs - Single, with Manufacturer of Cypress Semiconductor (Infineon Technologies) and Vgs(th) (Max) @ Id of 2.3V @ 36µA and Vgs (Max) of ±20V. Efficient purchasing through Cypress-Micro.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for BSZ0602LSATMA1 or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute BSZ060NE2LSATMA1 BSZ065N03LSATMA1 BSZ067N06LS3GATMA1 BSZ063N04LS6ATMA1
Part Number BSZ060NE2LSATMA1 BSZ065N03LSATMA1 BSZ067N06LS3GATMA1 BSZ063N04LS6ATMA1
Manufacturer Infineon Technologies Infineon Technologies Infineon Technologies Infineon Technologies
Vgs (Max) - - - -
Series - * * *
Current - Continuous Drain (Id) @ 25°C - - - -
FET Type - - - -
Technology - - - -
Drive Voltage (Max Rds On, Min Rds On) - - - -
Power Dissipation (Max) - - - -
Rds On (Max) @ Id, Vgs - - - -
Input Capacitance (Ciss) (Max) @ Vds - - - -
Package - Bulk Bulk Bulk
Gate Charge (Qg) (Max) @ Vgs - - - -
Package / Case - - - -
Drain to Source Voltage (Vdss) - - - -
Operating Temperature - - - -
Vgs(th) (Max) @ Id - - - -
Supplier Device Package - - - -
Base Product Number - - - -
Mounting Type - - - -
FET Feature - - - -
